Technical Keys vs. Business Keys in Data Vault
Source systems keep the business key in the master record, but every relationship runs on technical keys. Four ways to deal with that, what each one costs, and the pattern we use: a PSA hub for the technical keys, mapped to the business key hub.
The data warehouse automation solution trusted by data teams across industries
Does this sound familiar?
- The order table only carries a system-internal customer ID, and the customer number lives in another table.
- Every source got its own customer hub, and the data never came together.
- Staging joins look up business keys in the source, and nobody can prove anymore what the source actually delivered.
Data Vault builds on business keys: they are stable, shared between systems, and survive migrations. The trouble starts when you look at how source systems actually store relationships.
The problem: relationships run on technical keys
Most source systems keep the business key in the entity it defines. The customer table holds the customer number. The relationships, however, use the system’s own technical keys:
| Table | Columns |
|---|---|
Customer |
customer_id = 10492, customer_number = CUST-9921, name, address |
Order |
order_id = 884102, order_number = SO-1018, customer_id = 10492 |
The order knows its customer only as 10492. To connect it to the customer hub, which is keyed on
CUST-9921, something has to translate one into the other.
In classical modeling terms: the source uses surrogate keys for its foreign keys, while Data Vault wants the natural key. The question is where the translation happens.
Four ways to solve it
| Approach | How it works | The catch |
|---|---|---|
| 1. A source vault per system | Separate hubs for CRM customers and invoicing customers, keyed on technical IDs | Technically feasible, but the data never gets integrated |
| 2. Source APIs with business keys | Ask each source to deliver every relationship with business keys | Very nice when it happens, which is seldom |
| 3a. Your own lookups while staging | Replace technical keys with business keys by querying the source while staging | It works and is under your control, but the data is modified before it is written, so it is no longer auditable, and the lookups put load on production systems where it does not belong |
| 3b. Lookups after staging | Replace the technical keys by joining after staging, either against staging tables or against the vault | Joining the staging tables prevents delta loading, because the join needs the full tables. Joining against the vault works, but the data is still modified before it is loaded |
| 4. PSA hubs | Load technical keys into their own hub and map them to the business key hub | One more generated join when querying. A Business Vault load can make it unnecessary. |
The pattern we use: PSA hubs
A PSA hub is a hub for the technical keys of the source systems. PSA stands for persistent staging area, but not the one people refer to in data lakes, a flat copy of the source tables: this one is already in vault format, with hubs and links, and satellites where they are needed. In the example below, the PSA holds no attributes at all, only the technical relationships: the descriptive data sits on the business key hub.
Each concept gets two hubs, never one per source system:
- The PSA hub holds the technical keys of all systems, each with its
Business Key Prefix:
CRM|10492,ERP|80012. - The Raw Vault hub holds the business keys without a prefix:
CUST-9921.
Loading then needs no translation at all:
- Transactions load as delivered. The order
884102relates to customerCRM|10492through a link between the order PSA hub and the customer PSA hub, using the technical keys exactly as the source holds them. - Master records do the mapping. The customer record carries both
10492andCUST-9921, so it relates the PSA key to the business key, many to one. Several systems’ technical keys can point to the same customer. - Satellites go on the business key hub. The customer’s name and address describe
CUST-9921, whichever system delivered them.
The same pattern repeats for every concept: orders, products, contracts.
Querying: one path, and a shortcut

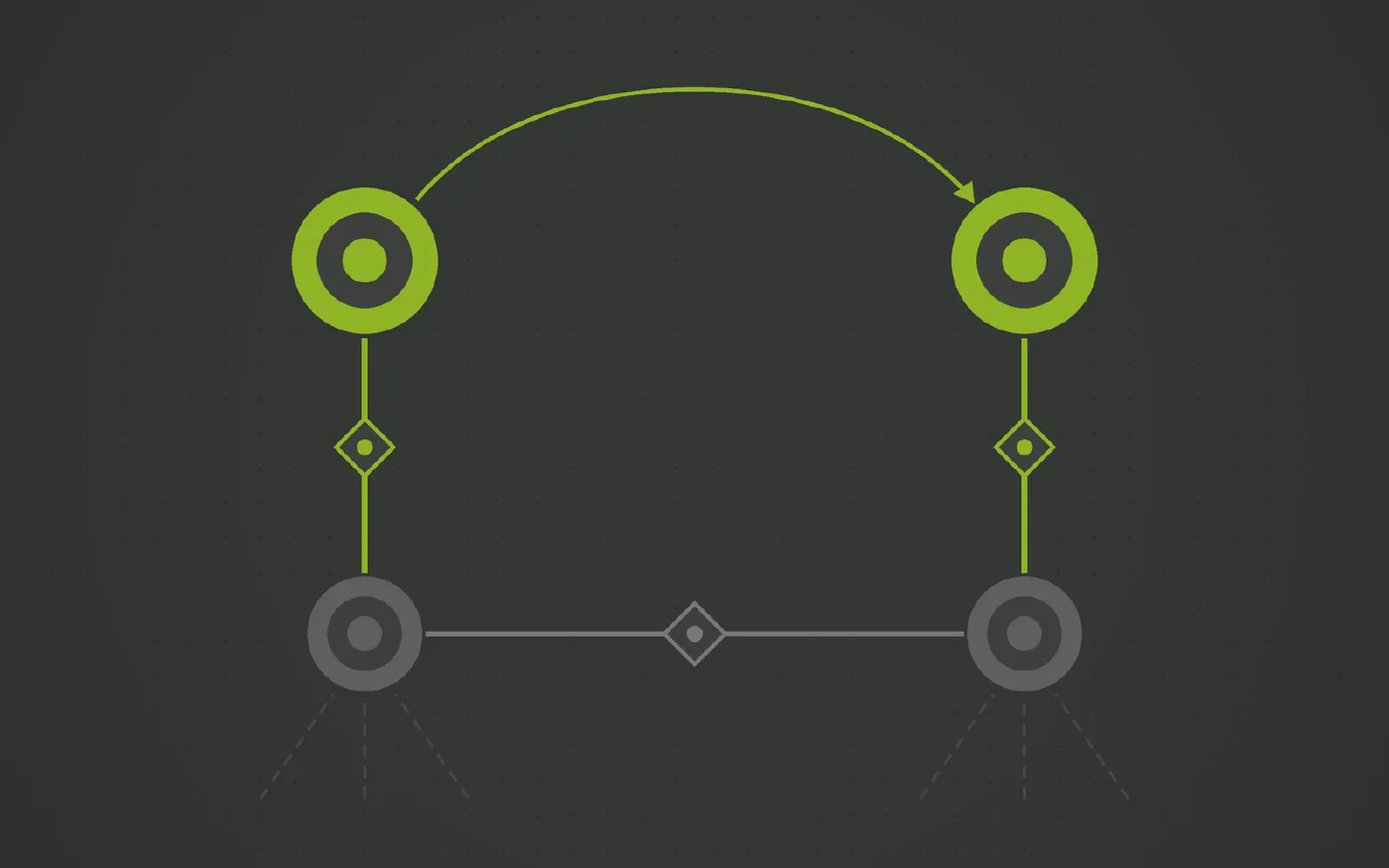

To output orders with their integrated customer, the query walks from the order to the order PSA hub, along the technical relationship to the customer PSA hub, and from there to the customer:
Order → Order PSA → Customer PSA → Customer
That is the raw, fully traceable path. Where queries need to be faster, you configure a Business Vault load that creates an exploration link: it resolves the path once and stores the direct relationship between order and customer. Reports read the short path; the long one stays as the audit trail.
What you gain
- Nothing is modified before it is written. Technical keys are loaded as the source delivered them, so every row stays auditable.
- No lookups against production systems. The translation happens inside the warehouse.
- Fast writes. Loading needs no lookups at all, so every source loads as fast as it delivers, and the exploration link is created asynchronously afterwards.
- Integrated output. All customers come out once, keyed on the business key, with every system’s transactions attached.
- Migrations stay contained. When a source system is replaced, its new technical keys map to the same business keys, and the history still lines up.
What changes with Datavault Builder
Datavault Builder supports the PSA, the Raw Vault, and the Business Vault, and all three form one integrated model. Each layer can be developed in agile steps, as it is needed: start with the PSA hubs, add the business key mapping, configure an exploration link where a query asks for it.
The Business Key Prefix that keeps CRM|10492 and ERP|10492 apart is part of the model, and the
hubs, links and loads of the pattern are generated like any others. The modeling decision stays
with you: which concept, which business key, and where an exploration link is worth it.
